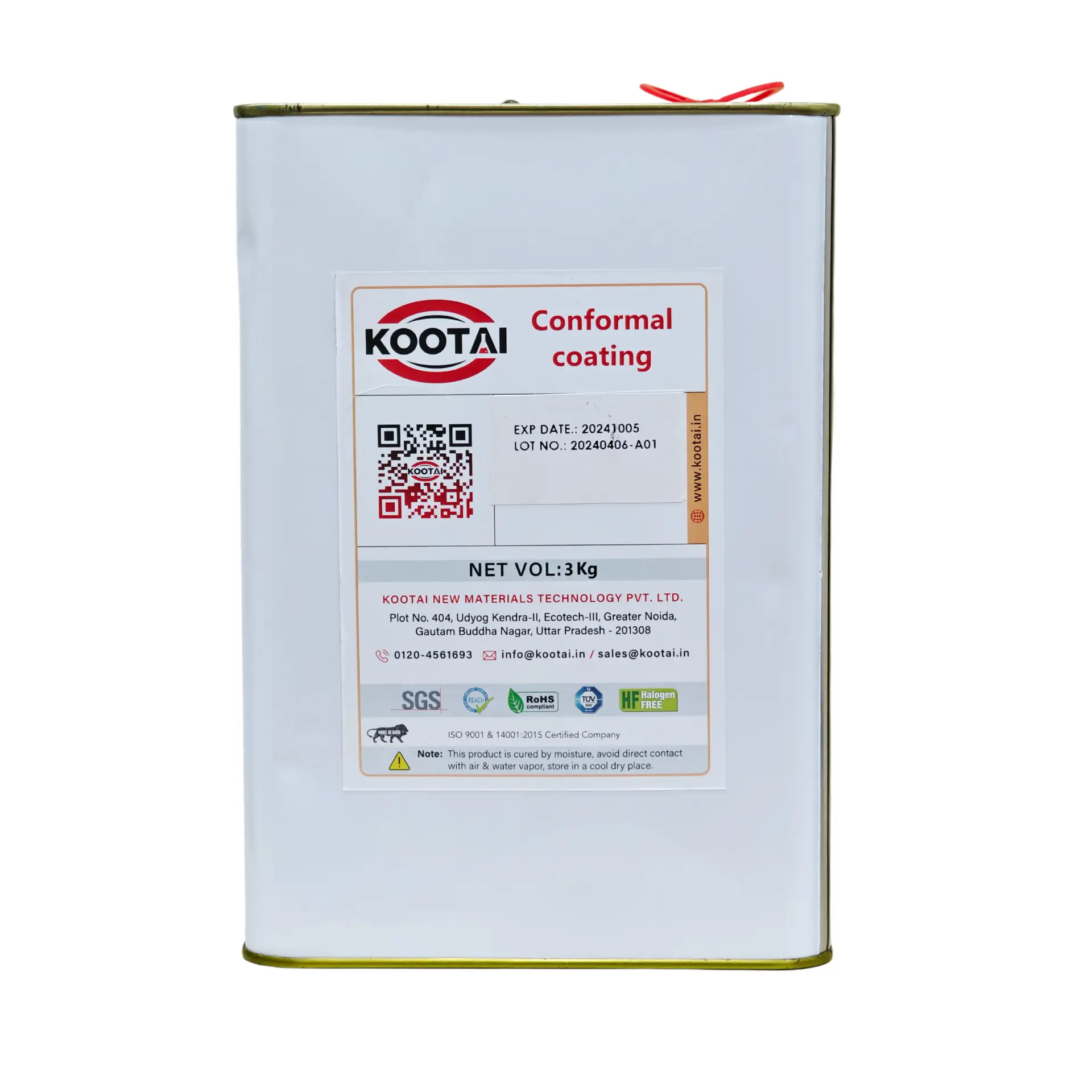

Kootai Conformal Coating

KLY-8200-AC

Kootai Conformal Coating

Technical Data Sheet Or Material Safety Sheet

KLY-8200-AC Kootai Conformal Coating is composed of special synthetic resin as the main body and special multi-component copolymer modified polymer resin. It combines the advantages of various single insulating materials and is completely different from traditional three-proof adhesive. After this three-proof adhesive is coated on the PCB, it can be used on various printed circuit boards through the adhesive reaction between its own groups and the air medium. Generates a dense protective film with strong insulation protection capabilities.

Self-reactive conformal adhesive is coated on printed circuit boards and components, which can reduce or eliminate electronic operating performance degradation when they may be affected by adverse factors in the operating environment. PCB circuit boards that have used three-proof adhesive have the “three-proof” properties of moisture-proof, salt spray-proof, and mildew-proof, as well as resistance to cold and heat shock, aging resistance, radiation resistance, salt spray resistance, ozone corrosion resistance, and vibration resistance, thereby improving the circuit board reliability, increase its safety factor, and ensure its service life. In addition, because this three-proof adhesive can prevent leakage, it allows higher power and closer printed board spacing. This can meet the purpose of component miniaturization. It has the characteristics of quick drying, low odor, and environmental protection, which can effectively improve customer production efficiency and quality

3 Kg

KLY-8200-AC - Sunhot Conformal Coating

Features & Applications

The KLY-8200-AC three-proof adhesive is a cutting-edge product composed of special synthetic resin and multi-component copolymer modified polymer resin, designed to provide superior insulation and protection for printed circuit boards (PCBs). Unlike traditional adhesives, it forms a dense protective film that offers moisture-proof, salt spray-proof, and mildew-proof properties, along with resistance to cold and heat shock, aging, radiation, ozone corrosion, and vibration. This adhesive enhances PCB reliability, safety, and service life while allowing for higher power and closer board spacing, supporting component miniaturization. It is quick-drying, low-odor, and environmentally friendly, making it ideal for improving production efficiency and quality. The KLY-8200-AC is widely used in electronic control boards for various devices, ensuring extended life and stability. It is stable at temperatures ranging from -40℃ to 125℃, has ultra-low water absorption, strong adhesion, and excellent weather resistance, making it a versatile and reliable choice for protecting electronic components.

Stable & temperature resistant -40℃~125℃

Stable and temperature resistant -40℃~125℃

Ultra-low water absorption

Ultra-low water absorption, excellent moisture-proof effect

Weather Proof

Strong weather resistance, resistance to hot and cold shock, and can effectively protect products

Good flexibility

The paint film has good flexibility and can effectively eliminate stress between components

Strong adhesion

Strong adhesion, can effectively prevent corrosion from salt spray, weak acid, alkali, etc.

FEATURES & BENEFITS

Stable and temperature resistant -40℃~125℃
Ultra-low water absorption, excellent moisture-proof effect
The paint film has good flexibility and can effectively eliminate stress between components
Strong adhesion, can effectively prevent corrosion from salt spray, weak acid, alkali, etc.
Strong weather resistance, resistance to hot and cold shock, and can effectively protect products

APPLICATIONS

HANDLING AND SAFETY

Workers should wear protective equipment, such as masks, gloves, aprons... The temperature and humidity of the production site should be controlled at: temperature 10℃-28℃, relative humidity The upper limit is 85%, and it is optimal under the condition of ≤70%
Make sure that the container containing the three-proof adhesive is clean and dry and free of any form of contamination. If there is contamination, stop using it immediately and replace it with a new three-proof adhesive
Under normal circumstances, there is no need to clean the coated surface before coating. But make sure the surface to be coated is dry, clean and free of Oil, dirt or any impurities
Maintain good ventilation equipment in the workplace to better protect the health of personnel
Keep the three-proof plastic container tightly closed to avoid the intrusion of water vapor, etc. Please read the Product Safety Data Sheet (MSDS) before using this product.

KLY-8200-AC - Kootai Conformal Coating

The KLY-8200-AC three-proof adhesive is a state-of-the-art solution designed to provide exceptional insulation and protection for printed circuit boards (PCBs). Composed of special synthetic resin and multi-component copolymer modified polymer resin, this adhesive forms a dense protective film that offers moisture-proof, salt spray-proof, and mildew-proof properties, along with resistance to cold and heat shock, aging, radiation, ozone corrosion, and vibration. It enhances PCB reliability, safety, and service life while supporting component miniaturization, making it an ideal choice for various electronic control boards in devices such as computers, communication products, televisions, audio equipment, household appliances, instruments, and medical equipment.

Applications and Safety Considerations

This adhesive is widely used for the protection of electronic control boards in various devices, including computers, communication products, televisions, audio equipment, household appliances, instruments, and medical equipment. It extends the life of circuit boards and improves their stability, making it an ideal choice for ensuring the reliability and safety of electronic components in diverse applications.

The KLY-8200-AC series three-proof adhesive is stable at temperatures ranging from -40℃ to 125℃, has ultra-low water absorption, strong adhesion, and excellent weather resistance, making it a versatile and reliable choice for protecting electronic components. It is quick-drying, low-odor, and environmentally friendly, making it ideal for improving production efficiency and quality. This adhesive enhances PCB reliability, safety, and service life while allowing for higher power and closer board spacing, supporting component miniaturization.
